门禁嵌入式主板
YKT-L50

     拨码对照表:

    嵌入式主板上有一个八位的拨码,对应1-8,是用来设置机器地址码的,对应列表输出如下,下列表中数字下对应的ON和OFF代表拨码打上或者不打(ON代表拨上,OFF代表不拨)用户可根据下表查询对应地址码该如何拨码,8位最多可以输出255个地址码,以下只列出62个供参考,如需增加,请咨询厂家技术员。



    拨号

    (是否)



    1

    2

    3

    4

    5

    6

    7

    8

    输出地址码


    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    0


    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    1


    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    2


    ON

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    3


    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    4


    ON

    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    5


    OFF

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    6


    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    7


    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    8


    ON

    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    9


    OFF

    ON

    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    10


    ON

    ON

    OFF

    ON

    OFF

    OFF

    OFF

    OFF

    11


    OFF

    OFF

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    12


    ON

    OFF

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    13


    OFF

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    14


    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    15


    OFF

    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    16


    ON

    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    17


    OFF

    ON

    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    18


    ON

    ON

    OFF

    OFF

    ON

    OFF

    OFF

    OFF

    19


    OFF

    OFF

    ON

    OFF

    ON

    OFF

    OFF

    OFF

    20


    ON

    OFF

    ON

    OFF

    ON

    OFF

    OFF

    OFF

    21


    OFF

    ON

    ON

    OFF

    ON

    OFF

    OFF

    OFF

    22


    ON

    ON

    ON

    OFF

    ON

    OFF

    OFF

    OFF

    23


    OFF

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    OFF

    24


    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    OFF

    25


    OFF

    ON

    OFF

    ON

    ON

    OFF

    OFF

    OFF

    26


    ON

    ON

    OFF

    ON

    ON

    OFF

    OFF

    OFF

    27


    OFF

    OFF

    ON

    ON

    ON

    OFF

    OFF

    OFF

    28


    ON

    OFF

    ON

    ON

    ON

    OFF

    OFF

    OFF

    29


    OFF

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    30


    ON

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    31


    OFF

    OFF

    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    32


    ON

    OFF

    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    33


    OFF

    ON

    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    34


    ON

    ON

    OFF

    OFF

    OFF

    ON

    OFF

    OFF

    35


    OFF

    OFF

    ON

    OFF

    OFF

    ON

    OFF

    OFF

    36


    ON

    OFF

    ON

    OFF

    OFF

    ON

    OFF

    OFF

    37


    OFF

    ON

    ON

    OFF

    OFF

    ON

    OFF

    OFF

    38


    ON

    ON

    ON

    OFF

    OFF

    ON

    OFF

    OFF

    39


    OFF

    OFF

    OFF

    ON

    OFF

    ON

    OFF

    OFF

    40


    ON

    OFF

    OFF

    ON

    OFF

    ON

    OFF

    OFF

    41


    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    OFF

    42


    ON

    ON

    OFF

    ON

    OFF

    ON

    OFF

    OFF

    43


    OFF

    OFF

    ON

    ON

    OFF

    ON

    OFF

    OFF

    44


    ON

    OFF

    ON

    ON

    OFF

    ON

    OFF

    OFF

    45


    OFF

    ON

    ON

    ON

    OFF

    ON

    OFF

    OFF

    46


    ON

    ON

    ON

    ON

    OFF

    ON

    OFF

    OFF

    47


    OFF

    OFF

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    48


    ON

    OFF

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    49


    OFF

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    50


    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    51


    OFF

    OFF

    ON

    OFF

    ON

    ON

    OFF

    OFF

    52


    ON

    OFF

    ON

    OFF

    ON

    ON

    OFF

    OFF

    53


    OFF

    ON

    ON

    OFF

    ON

    ON

    OFF

    OFF

    54


    ON

    ON

    ON

    OFF

    ON

    ON

    OFF

    OFF

    55


    OFF

    OFF

    OFF

    ON

    ON

    ON

    OFF

    OFF

    56


    ON

    OFF

    OFF

    ON

    ON

    ON

    OFF

    OFF

    57


    OFF

    ON

    OFF

    ON

    ON

    ON

    OFF

    OFF

    58


    ON

    ON

    OFF

    ON

    ON

    ON

    OFF

    OFF

    59


    OFF

    OFF

    ON

    ON

    ON

    ON

    OFF

    OFF

    60


    ON

    OFF

    ON

    ON

    ON

    ON

    OFF

    OFF

    61


    OFF

    ON

    ON

    ON

    ON

    ON

    OFF

    OFF

    62

    设备蜂鸣器响声代表的意思

    设备刷卡时蜂鸣器响声:

    响一声:刷正常开门卡

    响两声:刷管理卡

    响三声:无效地址码

    响四声:该卡为黑名单卡

    响五声:该卡未进行发卡

    刷密码卡时设备长鸣(两秒)

    两声长响:卡过期

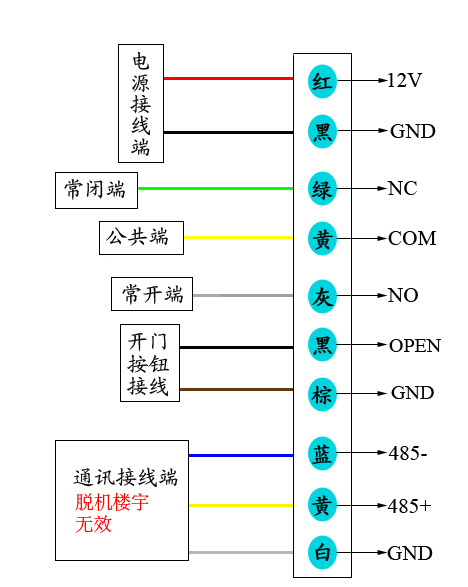

    接线示意图

    1、设备电源、控制接线图示说明:


    施工注意事项以及故障排除方法

    1、将有效卡在门禁机上面刷,蜂鸣器有响,但门未打开

    ☞ 把门禁机的电源线拔了,直接短路门禁电源的开锁信号线(PUSH与GND),检测一下是否能开门,如能正常开门,说明锁与门禁专用电源无异常。如不能正常开门,请更换门禁电源或者锁,或者检测一下锁的安装是否有偏差。

    ☞ 在检查锁与门禁电源都无异常的情况下,请检查一下门禁机与门禁电源的接线是否正确,在接线无误的情况,门还是无法开门,请与厂家技术员联系。

    2、门一直处于常开状态或者开闭间隔交换状态

    ☞ 开门按钮的两根线短路了。

    ☞ 电源的开门信号线短路(PUSH与GND短路)。

    ☞ 门禁机的常开脚与公共脚短路(COM与NO短路)。

    3、插上电,机器会嘀嘀鸣叫

    ☞ 电源功率不够,致使一体机无法正常启动,请更换功率较大的电源。

    ☞ 在确保门禁电源的供电正常的情况下,机器还一直鸣叫,请与厂家技术员联系。



    设备型号

    YKT-L50

    输入电压

    DC12V(+-10%)

    环境温度

    -40℃-70℃

    刷卡类型

    M1卡

    感应距离

    3-8CM(视卡而定)

    控制门数

    1个

    设备尺寸

    46*69mm

    通讯方式

    脱机

    软件版本

    YKT1.2

    存储

    机器不存储记录,可设置卡有效期
